AKOYA
Inspired by the sophistication that embodies the Akoya pearl, here is
a set of switches and sockets that will enhance any interior and blend seamlessly with any surface. The range includes dimmer controllers,Tv, telephone, data & USB outlets, key cards, shaver sockets, do not disturb and make up my room switches.
Switches
ITEM CODE | RATED CURRENT | RATED VOLTAGE | ITEM DESCRIPTION | |||
White | Cream | Gun Metallic | Black Matte | |||
260-0110 | 260-0111 | 261-0111 | 261-0112 | 16AX | 250V~ | 1Gang 1Way Switch |
260-0210 | 260-0211 | 261-0211 | 261-0212 | 16AX | 250V~ | 1Gang 2Way Switch |
260-0120 | 260-0121 | 261-0121 | 261-0122 | 16AX | 250V~ | 2Gang 1Way Switch |
260-0220 | 260-0221 | 261-0221 | 261-0222 | 16AX | 250V~ | 2Gang 2Way Switch |
260-0130 | 260-0131 | 261-0131 | 261-0132 | 16AX | 250V~ | 3Gang 1Way Switch |
260-0230 | 260-0231 | 261-0231 | 261-0232 | 16AX | 250V~ | 3Gang 2Way Switch |
260-0140 | 260-0141 | 261-0141 | 261-0142 | 16AX | 250V~ | 4Gang 1Way Switch |
260-0240 | 260-0241 | 261-0241 | 261-0242 | 16AX | 250V~ | 4Gang 2Way Switch |
Method of Application : Flush type
Method of connecting cables : Rewireable
Type of Terminals : Screw type
Method of Installation : Fixed

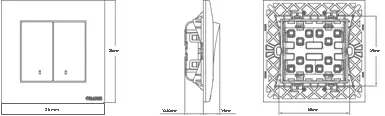

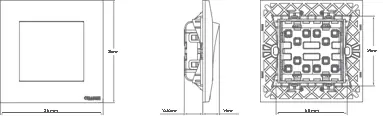

Mounting Center Distance : 60.3mm Recommended Mounting Box Depth : 35mm
Warranty Period : Lifetime warranty*
Standard Complied : IEC 60669 | BS EN 60669 | IS 3854 | SLS 1000
Materials : Plastics: Polycarbonate & Nylon (Flame Retardant) Metal Parts: Brass & Copper
Contacts: Pure Silver & Silver Cadmium
ITEM CODE | RATED CURRENT | RATED VOLTAGE | ITEM DESCRIPTION | |||
White | Cream | Gun Metallic | Black Matte | |||
279-0335 | N/A | 279-0343 | 279-0339 | 10AX | 250V~ | 4Gang 1Way Switch |
279-0336 | N/A | 279-0344 | 279-0340 | 10AX | 250V~ | 4Gang 2Way Switch |
260-0150 | 260-0151 | 261-0151 | 261-0152 | 10AX | 250V~ | 5Gang 1Way Switch |
260-0250 | 260-0251 | 261-0251 | 261-0252 | 10AX | 250V~ | 5Gang 2Way Switch |
260-0160 | 260-0161 | 261-0161 | 261-0162 | 10AX | 250V~ | 6Gang 1Way Switch |
260-0260 | 260-0261 | 261-0261 | 261-0262 | 10AX | 250V~ | 6Gang 2Way Switch |
260-0670 | 260-0671 | 261-0671 | 261-0672 | 10AX | 250V~ | 7Gang 1Way Switch |
260-0680 | 260-0681 | 261-0681 | 261-0682 | 10AX | 250V~ | 8Gang 1Way Switch |
Method of Application : Flush type
Method of Connecting Cables : Rewireable
Type of Terminals : Screw type
Method of Installation : Fixed

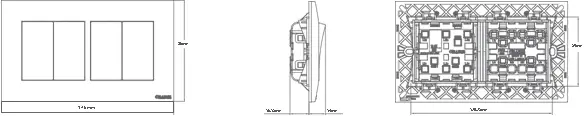

Mounting Center Distance : 120.6mm Recommended Mounting Box Depth : 35mm
Warranty Period : Lifetime warranty*
Standard Complied : IEC 60669 | BS EN 60669 | IS 3854 | SLS 1000
Materials : Plastics: Polycarbonate & Nylon (Flame Retardant) Metal Parts: Brass & Copper
Contacts: Pure Silver & Silver Cadmium
SWITCHES WITH INDICATORS
ITEM CODE | RATED CURRENT | RATED VOLTAGE | ITEM | |||
White | Cream | Gun Metallic | Black Matte | |||
267-0110 | 267-0111 | 268-0111 | 268-0112 | 10AX | 250V~ | 1Gang 1Way |
267-0210 | 267-0211 | 268-0211 | 268-0212 | 10AX | 250V~ | 1Gang 2Way |
267-0120 | 267-0121 | 268-0121 | 268-0122 | 10AX | 250V~ | 2Gang 1Way |
267-0220 | 267-0221 | 268-0221 | 268-0222 | 10AX | 250V~ | 2Gang 2Way |
267-0130 | 267-0131 | 268-0131 | 268-0132 | 10AX | 250V~ | 3Gang 1Way |
267-0230 | 267-0231 | 268-0231 | 268-0232 | 10AX | 250V~ | 3Gang 2Way |
267-0140 | 267-0141 | 268-0141 | 268-0140 | 10AX | 250V~ | 4Gang 1Way |
267-0240 | 267-0241 | 268-0241 | 268-0240 | 10AX | 250V~ | 4Gang 2Way |
Method of Application : Flush type
Method of Connecting Cables : Rewireable
Type of Terminals : Screw type
Method of Installation : Fixed
Mounting Center Distance : 60.3mm Recommended Mounting Box Depth : 35mm
Warranty Period : Lifetime warranty*
Standard Complied : IEC 60669 | BS EN 60669 | IS 3854 | SLS 1000
Materials : Plastics: Polycarbonate & Nylon (Flame Retardant) Metal Parts: Brass & Copper
Contacts: Pure Silver & Silver Cadmium
